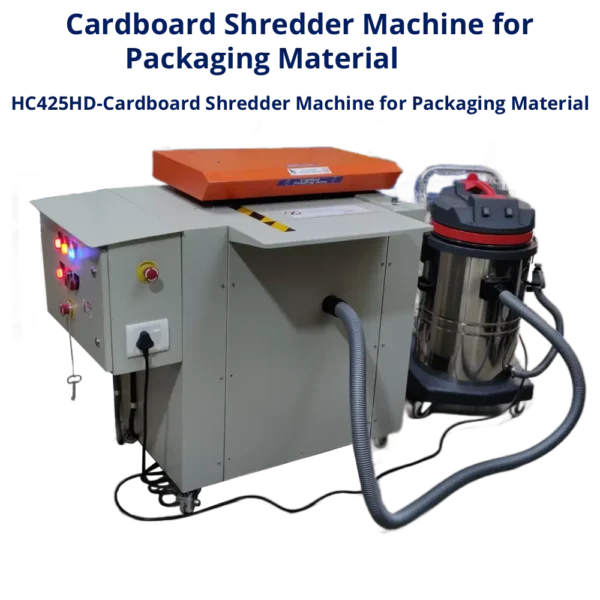

Cardboard Shredder For Packaging Material

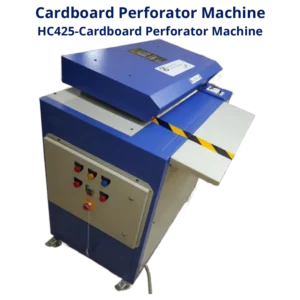

HC 425HD Cardboard Shredder for packaging material perforates cardboard to create honeycomb cardboard, an eco-friendly packaging material. HC 425HD cardboard shredder provides perforated cardboard upto 210 kgs/hr for packaging. We also have another model HC 425 which has capacity of providing 150 to 170 kgs/hr honeycomb cardboard.
Machine Type: Honeycomb Shredder, Industrial Shredders, Strip-cut Shredder
Application: Alternative Packaging Solutions (Cardboard Perforator Machine), Cardboard Shredders, Printing and Packaging Industry waste shredders and grinders

Description

HC 425HD Cardboard Shredder for Packaging Material perforates cardboard to create honeycomb cardboard, an eco-friendly packaging material. HC 425HD provides perforated cardboard up to 210 kgs/hr. We also have another model, HC 425, with a capacity of 150 to 170 kgs/hr of honeycomb cardboard.

In HC 425HD, instead of shredding, the cardboard is perforated and the output forms a netted mat resembling a honeycomb structure, hence called Honeycomb Cardboard.

This Shredded Cardboard Packaging Material, due to its extra padding, is used as cushioning—especially for packing glass bottles, flower vases, delicate artifacts, and other fragile items. For example, when packing glass bottles, the honeycomb cardboard is rolled around the bottle to provide additional protection during shipping.

It is also widely used in automobile industries and extensively in the E-commerce industry, where secure packaging is essential. Honeycomb cardboard is the best-suited option for such applications.

We are known for customization of our shredders and grinders, developing machines to suit customer requirements. HC 425HD and HC 425 are our recently manufactured cardboard shredders (also called cardboard perforators). These machines recycle used cardboard boxes, cartons, and sheets into flexible packaging material.

HC 425HD converts cardboard into a sustainable, eco-friendly packaging material. It is easy to operate and user-friendly. Its wide opening allows processing of any cardboard size. If the cardboard exceeds the feed size, the machine trims the excess while perforating the main chunk.

Types of paper boards that can be perforated through HC 425HD:

  • Cardboard plates and sheets
  • Corrugated cardboard (3ply, 5ply, 7ply)
  • Paperboard, fiberboard (gray cardboard), or chipboard
  • All types of cardboard boxes (flattened prior to feeding into the machine)

HC 425HD can perforate all types of corrugated cardboard (paperboard, sheets, cartons, boxes), but all cardboard must be flat before insertion.

Items that cannot be processed through cardboard perforators:

  • Thick cardboard rolls (too thick for the machine)
  • Thin papers such as craft paper (too thin for perforation)

Important Precautionary Steps: Always remove all staples or other hard metal objects from cardboard before feeding it into the machine. These objects may damage the cutting heads, impede smooth operation, or scratch delicate items like glass bottles or artifacts.

Kindly contact us for details of various models, pricing, and trials of cardboard shredders for packaging material.

Specifications

TECHNICAL SPECIFICATIONS
Model HC 425 HD
Production Output (Volume) 210 Kgs per hour (Output capacity varies with the thickness of ply and feeding speed)
Warranty We offer 1 year warranty* on entire machine and 5 years warranty* on cutting rotor (*conditions apply on usage).
Length Of Material Continuous Feeding
Cutting Width 425mm
Cardboard Thickness 10mm
Cardboard Size All size
Cardboard Thickness Max 10 ply (single)
Production Output (Boxes) Continuous
Working Height (mm) 900mm
Motor Capacity (HP/KW) 5HP
Voltage 415V
Noise Level (dbA) 65DB
Dimensions (LxBxH) approx 750 X 500 X 1100 mm
Weight of the Machine (Kg) 325 kgs
Dust Collection System Dust collection system is optional – an optimal attachment at an extra cost. Fine dust particles generated during shredding of corrugated boxes are collected with the help of a dust collector.

Salient Features

  • We do not use any plastic parts in manufacturing.
  • It is a user-friendly, plug-and-start machine – no complicated functions.
  • It is an easy and effortless job to clean and lubricate these machines.
  • Vibration free operation of the machine.
  • We offer 1 year warranty* on the entire machine and 5 years warranty* on the cutting rotor (*conditions apply on usage).
  • We also provide Dust Collection System with Vacuum at an extra cost – it is a preferred accessory which helps to collect dust particles generated while shredding cardboard separately.
  • If cardboard gets jammed, which is rare, a switch to reverse and forward is provided. You can hit the switch to reverse the cutting cylinders to remove the cardboard.

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
