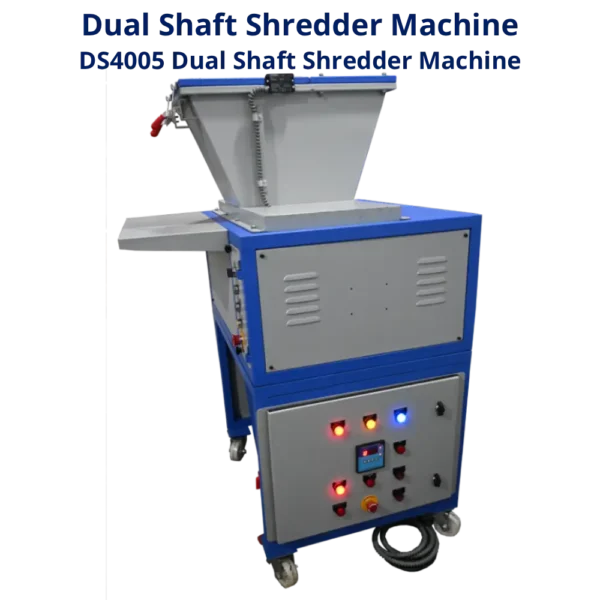

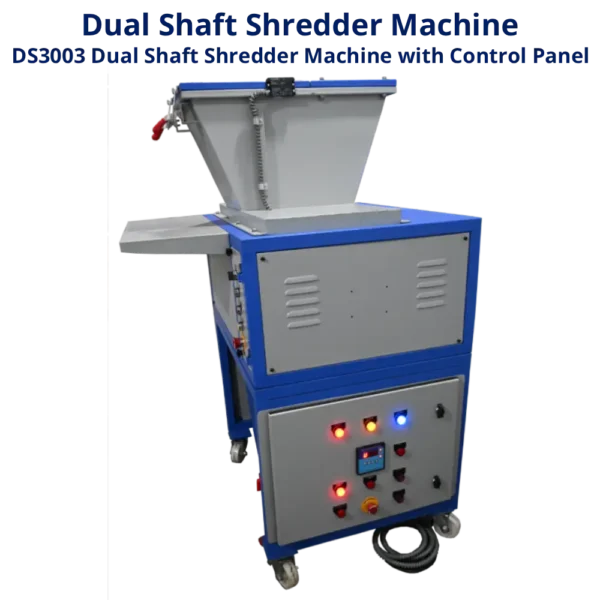

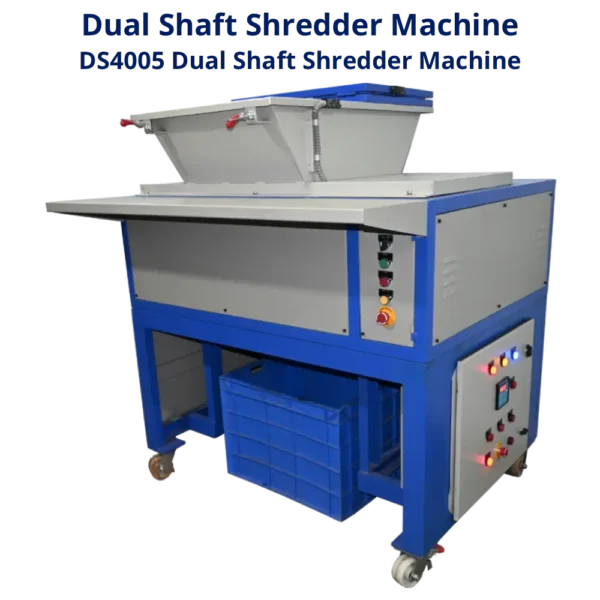

Dual Shaft Shredder Machine

Double shaft shredder or dual shaft shredder is built with two shafts of blades. Similar to other shredder and grinder machines from Raj Electricals, this is also a heavy-duty shredder machine.
Machine Type: Dual Shaft Shredders, Shredders
Application: Automobile Shredders

Description

Double shaft shredder machine or dual shaft shredder machine is built with two shafts of blades. Similar to other shredder and grinder machines from Raj Electricals, this is also a heavy-duty shredder machine. Raj Electricals is manufacturing six different dual shaft models and the model numbers are given below with their specifications.

Click the tabs below to view specifications, salient features and the video.

All the models are manufactured using best quality raw material and there is no use of plastic. Dual shaft models can be operated continuously for 24 hours. That is, continuous duty with no cooling required. All the parts can be easily cleaned and lubricated.

Double Shaft shredder has multiple applications in waste recycling. It shreds the waste output produced during the production process in various industries which can be further recycled and used.

Operation of dual shaft shredder – when the material is fed into the hopper, the two shafts of cutting blades catch/hook the material and shred/bite the material till it is completely shredded to small uneven particles (uneven because no mesh is involved to filter and hence the output is discharged directly for collection into the trolley. The double shaft shredder machine shredded output is uneven or random.

Raj Electricals have range of dual shaft shredder machines catering to various output capacity required by our customers. These models are –
DS5007, DS1015, DS2002, DS3003, DS4005, DS7510. Detailed specifications are given in a chart in the adjacent tabs.

Dual Shaft Shredder is used to shred variety of waste items such as non-woven bags waste, cement bags waste, hard disk drive. It is also used to shred plastic drums. Some of the other applications include shredding of glucose bottles, plastic jars, pet bottles, food waste, vials, saline bottle, saline tubes, ampoules, syringes, catheters, blister packs, lami tubes, hospital waste, PVC blisters, papers, carton, fibre material, etc.

We are known for customization of our machines as per customer’s requirement.

Kindly contact us for details of various models, prices and trial of Dual Shaft Shredder Machines.

Specifications

Technical Specifications of Dual Shaft Shredder DS5007
Model DS5007
Feed Width 500 mm
Voltage 415 volts AC, 3 phase, 50 Hz
Power Required 7.5 HP / 5.6 kW
Shred Size 25 x 60 (uneven)
Shredding Capacity 200 kgs/hr
Machine Dimension (approx) 1350 mm x 900 mm x 1850 mm
Duty Cycle Continuous – non-stop running, no cooling required
Applications Can shred HDPE and LDPE (cement bag/non-woven bag), syringes, vials, ampoules, saline bottles, catheters, glucose bottles, saline tubes, lami tubes, blister packs, PVC blisters, paper, PET bottles, hospital waste, cartons, fibre material, etc.

Salient Features

  • Installation and maintenance services on site.
  • Control panel with auto reverse and anti-jamming feature, 360-degree safety with LOTO switch.
  • Overload & phase failure protection.
  • User-friendly and durable machine.
  • No plastic parts used in manufacturing. All metal parts with rugged construction.
  • Vibration free.
  • 3-phase indicator lamps with stop, start, and reverse inching push buttons.
  • All guards interlocked with limit switch (at extra cost).
  • Run time – Continuous duty.
  • Easy to clean & lubricate.
  • Separate movable trolley is provided to collect the output.
  • Large waste collection trolley for collecting large volumes of output.

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
