Specifications

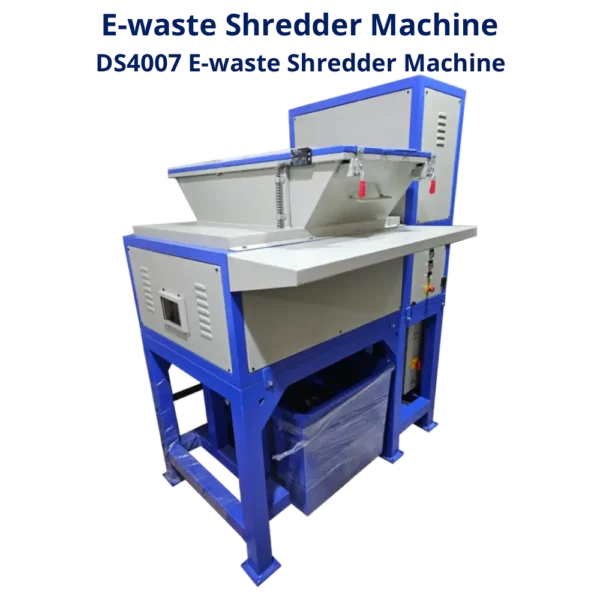

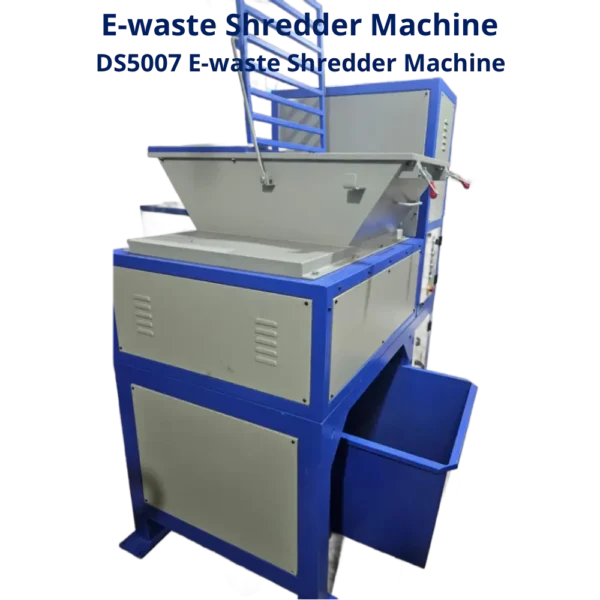

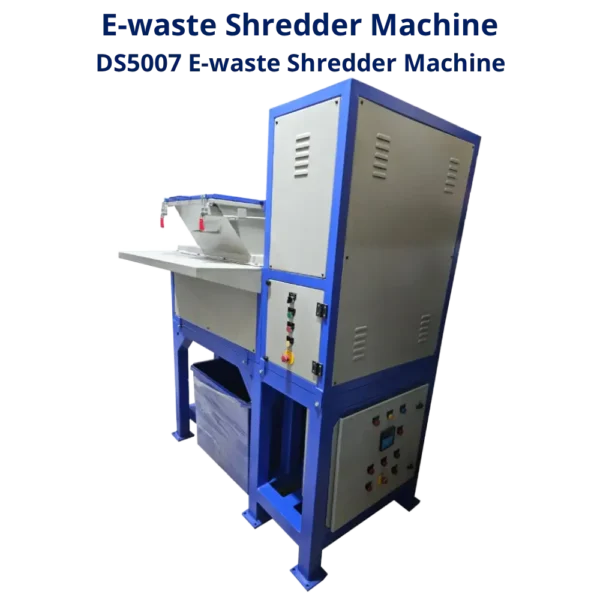

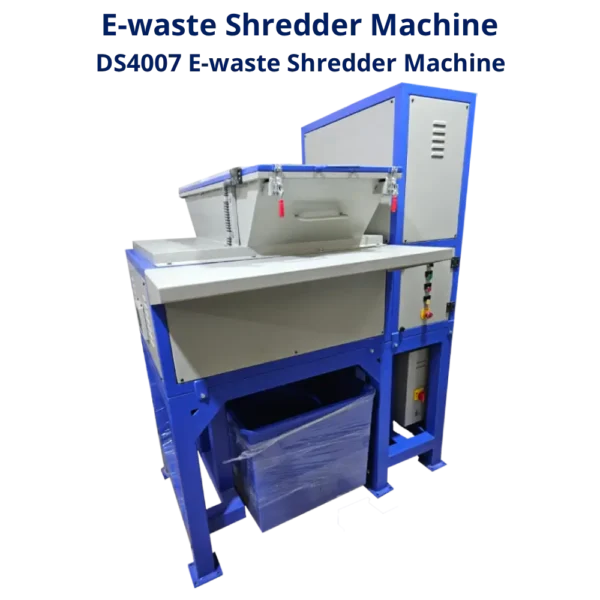

Technical Specifications of E-Waste Shredder Machine
Model No	DS 5007	DS 1015
Feed Width (mm)	500 mm	1000 mm
MOTOR HP	7HP	15HP
Shred Size (mm)	12 x 50 or uneven	24 x 60 mm
Shred Capacity Per/Hr	150 to 200 kg/hr	350 to 400 kg/hr
Machine Dimensions (mm)	72″ L x 26″ W x 69″ H	104″ L x 32″ W x 70″ H
Weight (kgs approx)	500 kgs	200 kgs
Duty Cycle	Continuous	Continuous
Waste Volume (Litres)	180 Litres	275 Litres
Overload Protection	Yes	Yes
Trolley	Optional	Optional
Unwinder with Roller Assembly	Optional	Optional

Note: Output/Capacity depends on type of material, scrap size & shape. All specifications are subject to change without notice for constant product development.

Salient Features

User-friendly
Continuous duty
Durable
All metal parts and rugged construction
High-security level
Overload & phase failure protection
Maintenance free
Smooth operations
Low power consumption

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,

Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts, Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
