Specifications

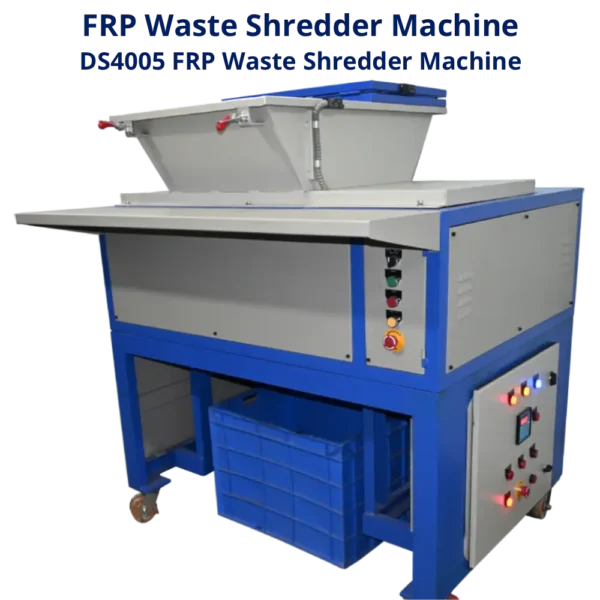

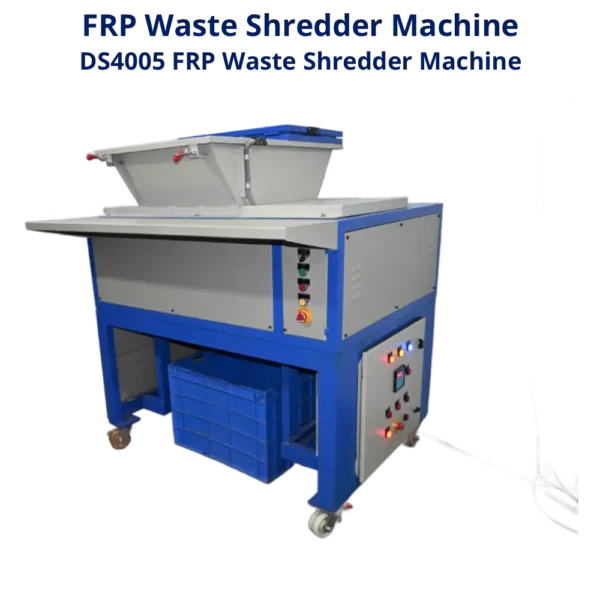

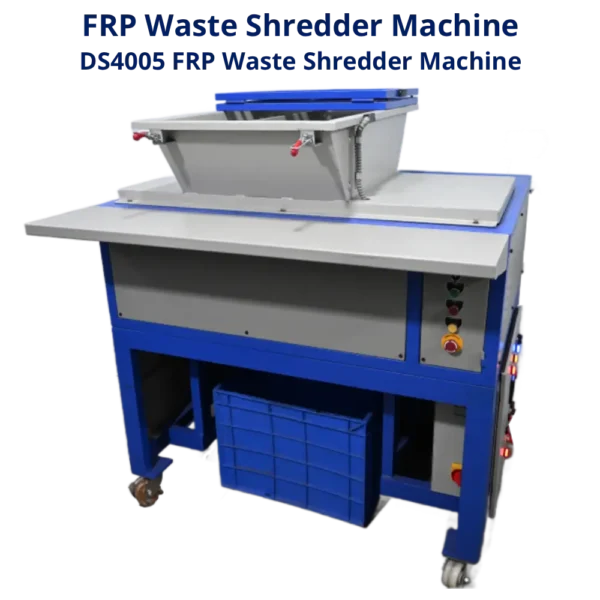

Technical Specifications of FRP Waste Shredder Machine DS4005
Model	“DS4005”
Feed Width	400 mm
Voltage	415 volts ac 3 phase 50 hz
Power Required	5 hp / 3.75 kw
Shred Capacity	250 kgs/hr to 300 kgs/hr (depending upon the material density)
Shred Size	Uneven
Waste Collection Trolley	100 litres (approximately)
Duty Cycle	Continuous – non-stop running, no cooling required
Applications	DS4005 FRP Waste Shredder can shred FRP Waste and Scrap. It can also shred Laminated Jute Fabric, Vials, Ampoules, Glass bottles, Syringes, Lami Tubes. It can also shred Cartons, Mono Cartons, Corrugated Boxes, Blister Packs, Plastic Vials, Catheters, Aluminium Foils, Tablets, HDPE Bottles, etc.

Salient Features

Installation and maintenance services on site.
No plastic parts used in manufacturing. All metal parts with rugged construction.
Vibration free. Easy to clean & lubricate.
User-friendly and durable machine, plug and start – no complicated functions involved.
Control panel with auto-reverse, anti-jamming feature, and 24 Volt DC control circuit with R.Y.B phase indicators, 360° safety with LOTO switch.
All moving parts are enclosed & bolted with special Allen key bolts.
Limit switch interlock for hopper (machine will stop if hopper is removed).
Stop/Start push button with E-stop & reverse inching push button with buzzer for overload.
All guards interlocked with limit switch (at extra cost).
Run time – Continuous duty.
Overload & phase failure protection.
Optional – Belt conveyor at the output can be provided at extra cost.

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,

Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts, Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
