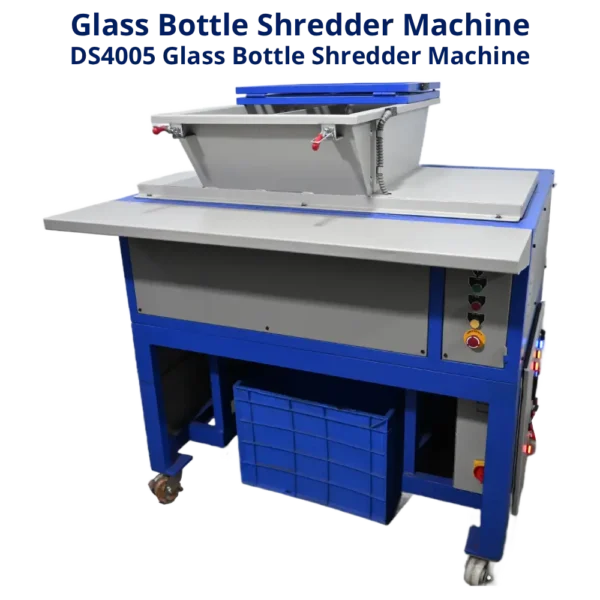

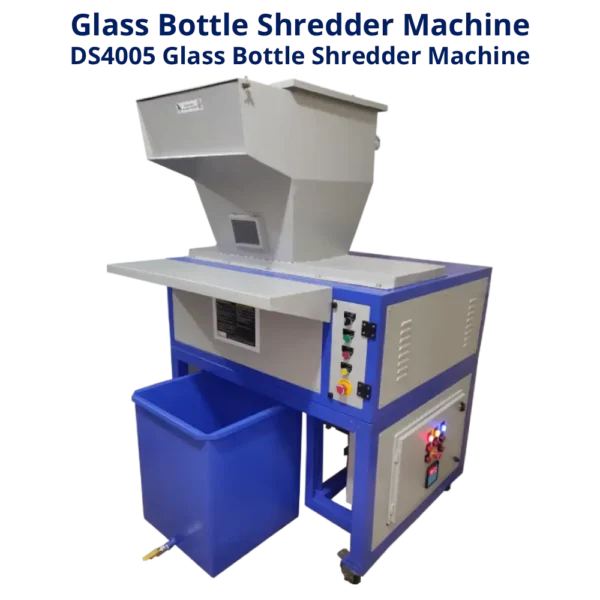

Glass Bottle Shredder Machine

Glass Bottle Shredder Machine is a heavy-duty shredder machine from Raj Electricals. It is a dual shaft shredder machine, that can shred glass bottles,vials, ampoules,lami tubes,syringes, and large bottles up to 250ml (to be fed one by one).
Machine Type: Dual Shaft Shredders
Application: Glass Waste Shredders and Crushers

Description

Glass Bottle Shredder Machine is a heavy-duty shredder machine from Raj Electricals. It is a dual-shaft shredder machine that can shred glass bottles, vials, ampoules, lami tubes, syringes, and large bottles up to 250ml (to be fed one by one). Our shredder and grinders are manufactured using the best quality raw material and are user-friendly as well as durable machines.

One of the significant virtues of this machine is that bottles filled with liquid can also be inserted for shredding. There is no need to empty the bottle prior to shredding. If the bottles are filled with liquid and inserted, the liquid is separated by an SS mesh. The mesh is placed in the waste collection bin. In this process, the liquid is drained through the mesh, which can further be drained through a pipe connected to the bin with a drain valve at the outlet.

Kindly contact us for details of various models, prices and trial of Glass Bottle Shredder Machine.

Click the tabs below to view specifications, salient features and the video.

Specifications

Technical Specifications of Glass Bottle Shredder DS4005
Model DS4005
Feed Width 400 mm
Voltage 415 volts AC, 3 phase, 50 Hz
Power Required 5 HP
Shred Capacity 250 kgs to 300 kgs/hr
Shred Size Uneven
Dimension L 57″ × W 46″ × H 77″ (approx.)
Weight 850 kgs (approx.)
Waste Collection Trolley 100 litres (approx.)
Duty Cycle Continuous – non-stop running, no cooling required
Chamber Size No. 1 200 x 200
Applications (Chamber 1) Vials, Ampoules, Glass Bottles, Syringes, Lami Tubes, big bottles up to 250ml (one by one)
Chamber Size No. 2 200 x 200
Applications (Chamber 2) Cartons, Mono Cartons, Corrugated Boxes, Blister Packs, Tablets, HDPE Bottles, Plastic Vials, Catheters, Aluminium Foils, etc.
Liquid Separation SS Mesh in waste bin; liquid drains through the mesh and the outlet drain valve.

Salient Features

  • User-friendly and durable machine
  • Run time – Continuous duty
  • Easy to clean & lubricate
  • Overload & phase failure protection
  • No plastic parts used in manufacturing; all metal parts with rugged construction
  • Vibration free
  • Separate movable trolley is provided to collect the output
  • Large waste collection trolley for collecting large volumes of output
  • Installation and maintenance services on site
  • Control panel with auto reverse, anti-jamming feature, and 360° safety with LOTO switch
  • 3 phase indicator lamps with stop, start, and reverse inching push buttons
  • All guards interlocked with limit switch (at extra cost)

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
