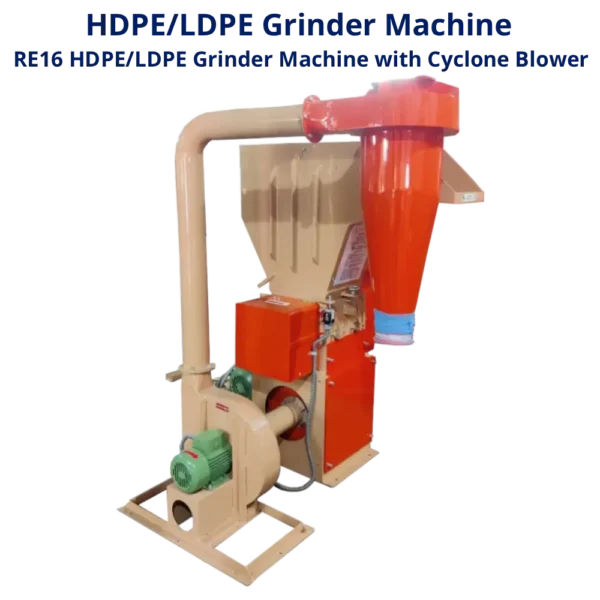

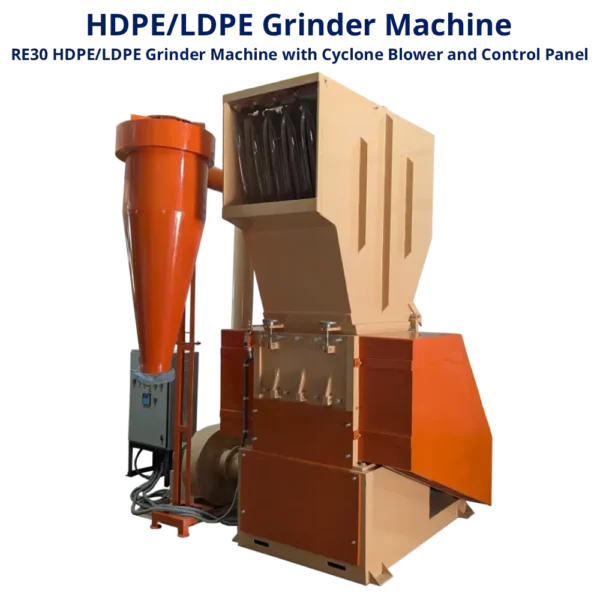

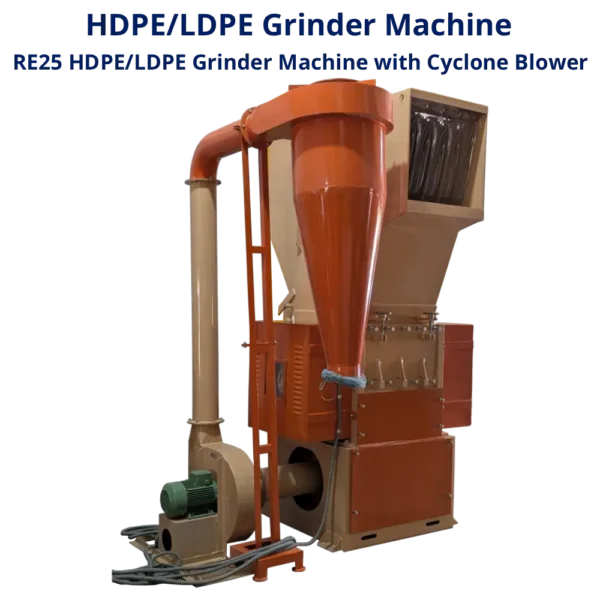

HDPE Grinding Machine with Blower

All our Shredders and Grinders machines are manufactured using best quality raw material and using state-of-art equipments. This machine HDPE Grinding Machine with Blower is also a robust, durable and efficient machine.
Machine Type: Grinders
Application: Plastic Waste Grinders, Plastic Waste Shredders

Description

All our Shredders and Grinders machines are manufactured using best quality raw material and state-of-art equipment. This machine HDPE Grinding Machine with Blower is also a robust, durable and efficient machine.

Shredder and Grinder Machines are used to destroy waste. Paper Shredder Machine is used to shred huge volumes of paper to avoid duplication and misuse. Similarly, Plastic Grinder Machine is used to grind plastic because waste plastic if remains uncycled in landfills can be hazardous to the environment and living beings.

The used HDPE/LDPE bottles thrown in landfills are harmful to the environment. HDPE/LDPE Bottle Grinder grinds the waste HDPE/LDPE bottles for further recycling.

HDPE and LDPE Bottles after use are thrown in landfills and toxic gases emitted from landfills is one of the reasons for environmental pollution. Hence, it is essential to grind the HDPE and LDPE bottles and then they can be further recycled.

Important Note:

  • Material should be dry.
  • Blades sharpening should be done periodically.
  • Caution: No metal object such as spoon, fork, coins, screwdriver, etc. should enter into the cutting area. It will break the blades.
  • Output capacity will vary depending on type and density of material and size of mesh used.
  • All the specifications are subject to change without notice for constant product development.
  • For export orders – We provide a motor of specific voltage/hertz as per the desired requirement.

Kindly contact us for details of various models, prices and trial of HDPE/LDPE Bottle Grinder.

Specifications

TECHNICAL SPECIFICATIONS
Model No RE8″ RE12″ RE16″ RE20″ RE25″ RE30″
POWER REQ. 3HP + 0.5HP 5HP + 1HP 10HP + 2HP 15HP + 3HP 25HP + 5HP 30HP + 5HP
Grinding Cap/hr. 20kgs 40kgs to 50kgs 80kgs to 100kgs 150kgs to 200kgs 300kgs to 400kgs 500kgs to 600kgs
MESH SIZE (customized) 15mm 15mm 15mm 15mm 15mm 15mm
NO OF BLADES (in 1 set) 5 (3 Rotating, 2 Fix) 5 (3 Rotating, 2 Fix) 5 (3 Rotating, 2 Fix) 5 (3 Rotating, 2 Fix) 5 (3 Rotating, 2 Fix) 5 (3 Rotating, 2 Fix)
Throat Size 8″ x 8″ 12″ x 12″ 16″ x 16″ 20″ x 20″ 25″ x 25″ 30″ x 30″
LENGTH OF BLADES 8″ 12″ 16″ 20″ 25″ 30″
Dimensions L X W in mm (approx) 950 x 650 1100 x 950 1525 x 1125 1600 x 1250 1750 x 1350 1875 x 1500
WEIGHT OF MACHINE (approx) 275kgs 450kgs 900kgs 1200kgs 2000kgs 3000kgs
Application – Can grind Pet Bottle up to 500ml Pet Bottle up to 1litre Pet Bottle/Jar up to 10litres Pet Bottle/Jar up to 20litres Any Plastic Material below 25″ Any Plastic Material below 30″

Salient Features

  • User friendly
  • Smooth operations
  • High security level
  • Low power consumption
  • Maintenance free
  • Durable

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
