Non-woven Bags Shredder Machine

Non-woven bags are shredded using a dual shaft shredder machine from Raj Electricals. Non-woven bags are made of polypropylene (pp) and polypropylene is categorized as plastic.
Machine Type: Dual Shaft Shredders, Shredders
Application: Plastic Waste Shredders

Description

Non-woven bags Shredder Machine – Non-woven bags are shredded using a dual shaft shredder machine from Raj Electricals. Non-woven bags are made of polypropylene (pp) and polypropylene is categorized as plastic. As plastic waste is hazardous, non-woven bag recycling is necessary and one of the primary steps in recycling is shredding. Non-woven Bags shredder shreds non-woven bags to small sizes.

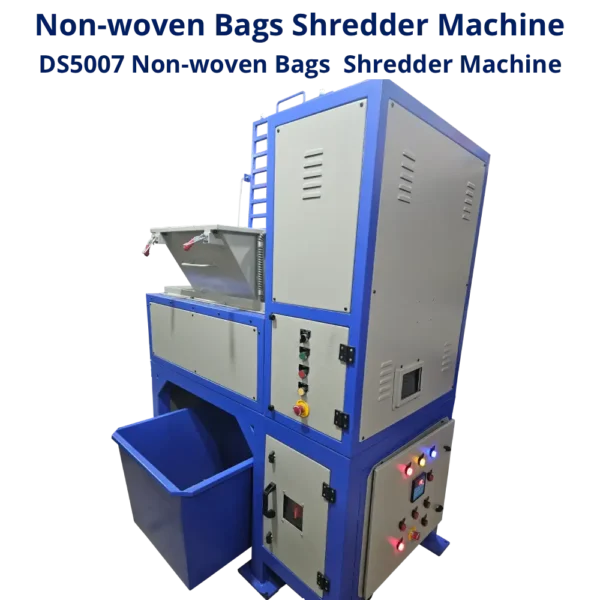

Dual Shaft Shredder DS5007 from Raj Electricals is a heavy-duty shredder machine built with two shafts of blades which enables it to shred huge volumes of non-woven bags which includes non-woven cement bags, non-woven jumbo bags, non-woven cement sacks, etc.

Dual shaft shredder DS5007 is used to shred non-woven bags because of its low speed and also because it uses high torque technology to shred these non-woven bags. The capacity of DS5007 is approximately 200 kgs/hr. Another advantage is it enables auto-reverse during overload protection and prevents blade damage. We have five more models of dual shaft shredder apart from DS5007 and they are – DS1015, DS2002, DS3003, DS4005, DS7510, providing varying capacity output. Dual shaft shredder machine from Raj Electricals runs for 24 hours – continuous duty – no cooling required. Double Shaft Non-Woven Bags Shredder from Raj Electricals can also be used to shred plastic drums, hard disk drive shredder. This type of dual shaft shredder is also used to shred various other items, which include vials, ampoules, glucose bottles, syringes, catheters, saline bottles, saline tubes, blister packs, lami tubes, plastic jars, pet bottles, food waste, hospital waste, PVC blisters, papers, cartons, fibre material, etc.

Kindly contact us for details of various models, prices, and trial of Non-woven Bags Shredder Machine.

Specifications

Technical Specifications of Non-woven Bags Shredder
Model “DS5007”
Feed Width 500 mm
Power Required 7.5 hp / 5.6 kw
Machine Dimension (approx) 1350 mm x W 900 mm x H 1850 mm
Shred Size 25 x 60 (uneven)
Shred Capacity 200 kgs/hr
Duty Cycle Continuous – non-stop running, no cooling required
Applications Can shred HDPE and LDPE (Cement Bag/Non-woven Bag), paper, pet bottles, hospital waste, cartons, fibre material, syringes, vials, ampoules, saline bottles, catheters, glucose bottles, saline tubes, lami tubes, blister packs, PVC blisters, etc.

Salient Features

  • Installation and maintenance services on site.
  • 3-phase indicator lamps with stop, start, and reverse inching push buttons.
  • All guards interlocked with limit switch (at extra cost).
  • User-friendly and durable machine.
  • No plastic parts used in manufacturing. All metal parts with rugged construction.
  • Vibration free.
  • Run time – Continuous duty.
  • Easy to clean & lubricate.
  • Control panel with auto reverse and anti-jamming feature, 360-degree safety with LOTO switch.
  • Separate movable trolley is provided to collect the output.
  • Large waste collection trolley for collecting large volumes of output.
  • Overload & phase failure protection.

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
