Specifications

TECHNICAL SPECIFICATIONS

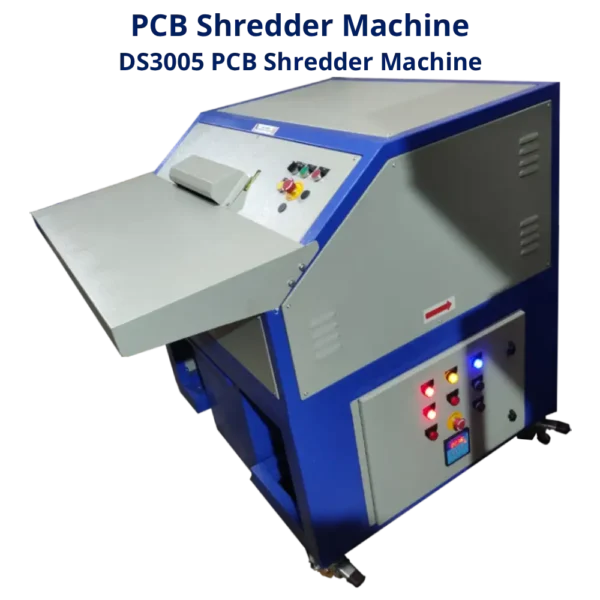

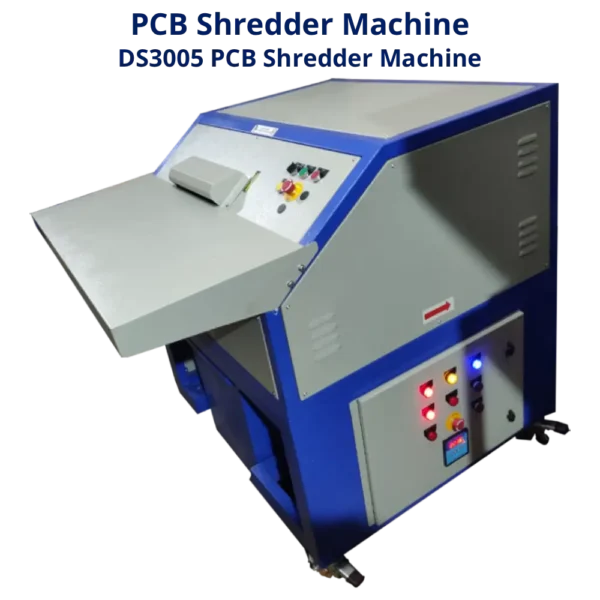

Model	“DS3005”
Feed Width	300 mm
Voltage	415 volts ac 3 phase 50 hz
Power Required	5 hp / 3.75 kw
Shred Capacity	150 kgs/hr to 200 kgs/hr
Shred Size	Uneven
Waste Collection Trolley	60 liters (Approx)
Control Panel	Panel with 24DC Control circuit with R.Y.B phase indicators, Overload and phase failure protection, Loto switch, Limit switch for Hopper (Machine will stop if hopper is removed), Stop/Start push button with Emergency stop and Reverse inching push button with buzzer for overload.
Machine Dimension (Approx)	Length – 47” x Width – 48” x Height – 77”
Weight of the machine (Approx)	650 kgs
Duty Cycle	Continuous – non-stop running, no cooling required
Applications	Can shred PCB-Printed Circuit Boards, mobiles, chargers, electronic waste that includes all types of digital storage devices like HDD, USB (Pen Drives), Tapes, SSD, Floppy, etc.

Salient Features

Installation and maintenance services on-site.
Control panel with auto reverse and anti-jamming feature, 360-degree safety with LOTO switch.
Provision of 3-phase indicator lamps with stop, start, and reverse inching push buttons.
All guards are interlocked with a limit switch (available at extra cost).
User-friendly and durable machine.
No plastic parts used in manufacturing; all-metal parts with rugged construction.
Vibration-free operation.
Run time – Continuous duty.
Easy to clean and lubricate.
Separate movable trolley provided to collect shredded output.
Machine stops automatically if the trolley is removed (feature available at extra cost).
Overload and phase failure protection.

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,

Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts, Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
