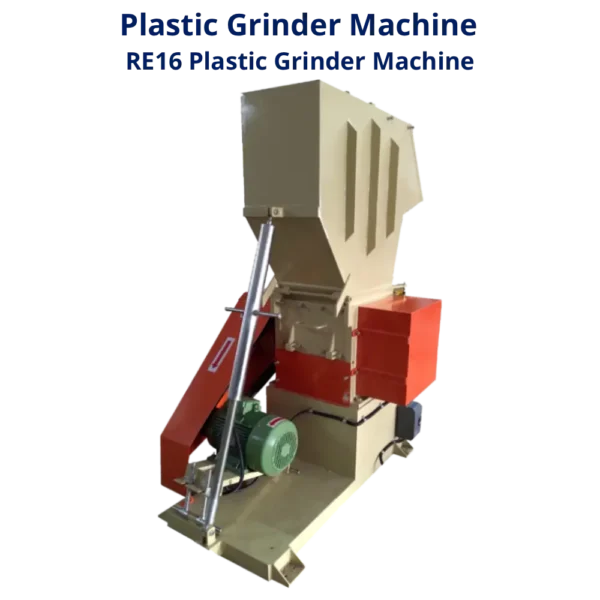

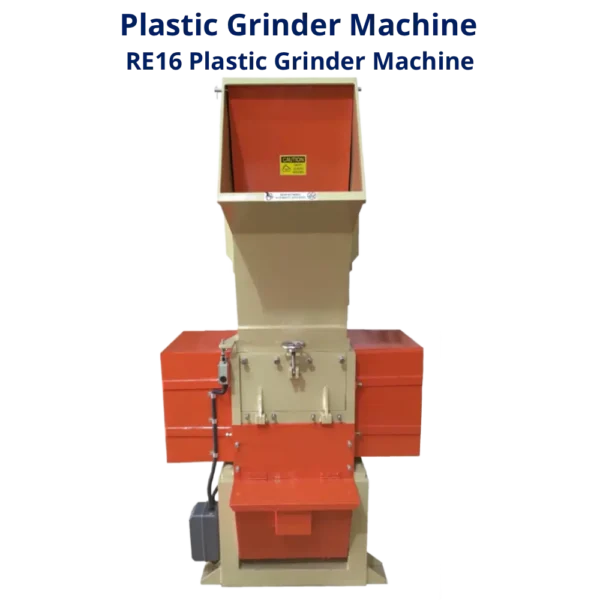

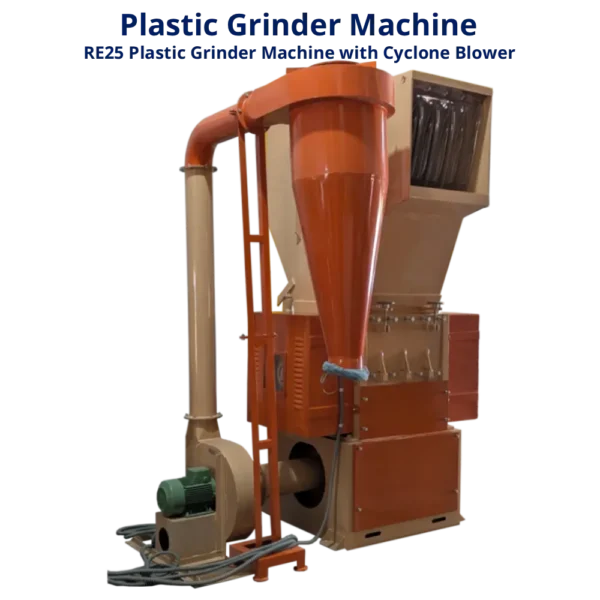

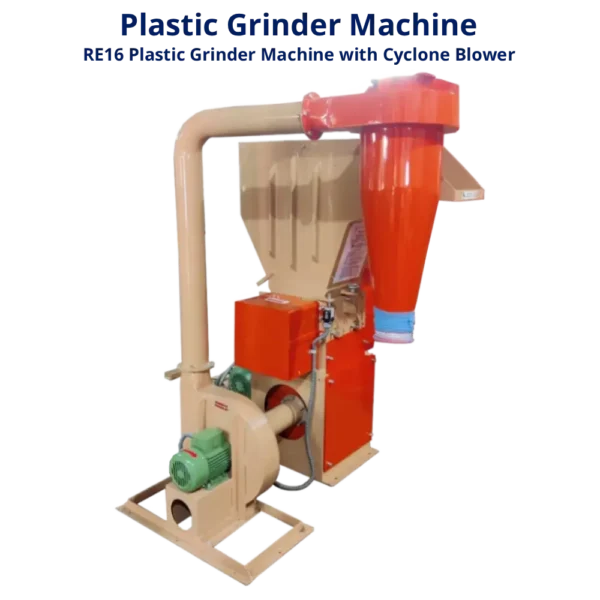

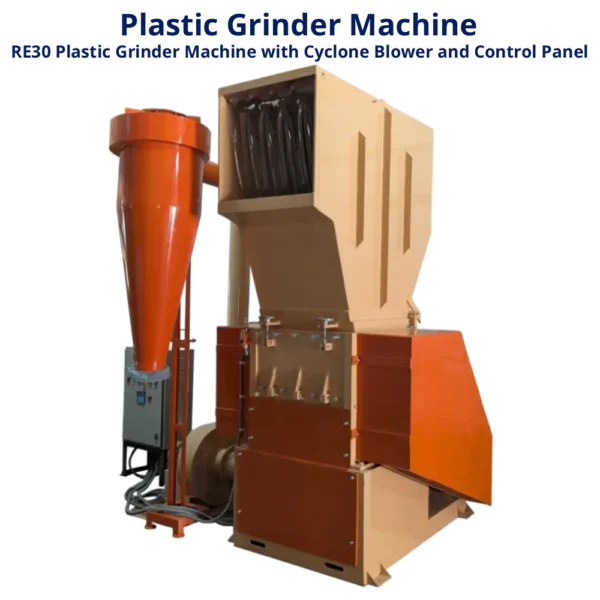

Plastic Grinder Machine

Plastic Grinder Machine is used to crush and grind plastic bottles. Reputed for sturdy, robust make Plastic Grinder Machine from Raj Electricals is also known for its efficiency. This Plastic Grinder crushes USED plastic bottles for recycling. This crushed bottles are thus disposed off in a permissible manner. Similar to other shredder and grinders from Raj Electricals this Plastic Scrap Grinder Machine is designed to offer top class services and is priced economically.
Machine Type: Grinders
Application: Plastic Waste Grinders, Plastic Waste Shredders

Description

Plastic Grinder Machine is used to crush and grind plastic bottles. Reputed for sturdy, robust make Plastic Grinder Machine from Raj Electricals is also known for its efficiency. This Plastic Grinder crushes USED plastic bottles for recycling. These crushed bottles are thus disposed of in a permissible manner. Similar to other shredder and grinders from Raj Electricals this Plastic Scrap Grinder Machine is designed to offer top-class services and is priced economically.

Important Note:

  • Material should be dry.
  • Blades sharpening should be done periodically.
  • Caution: No metal object such as spoon, fork, coins, screwdriver, etc. should enter into the cutting area. It will break the blades.
  • Output capacity will vary depending on type and density of material and size of mesh used.
  • All the specifications are subject to change without notice for constant product development.
  • For export orders – We provide a motor of specific voltage/hertz as per the requirement.

Few more machines from Raj Electricals to shred and grind plastic waste:

Kindly contact us for details of various models, prices and trial of Plastic Grinder Machine.

Specifications

TECHNICAL SPECIFICATIONS
Model No RE8″ RE12″ RE16″ RE20″ RE25″ RE30″
POWER REQ. 3HP 5HP 10HP 15HP 25HP 30HP
Grinding Cap/hr. 40kgs 80kgs 125kgs 200kgs 300kgs 450kgs
NO OF BLADES 5 5 5 5 5 5
Throat Size 8″ x 8″ 12″ x 12″ 16″ x 16″ 20″ x 20″ 25″ x 25″ 30″ x 30″
LENGTH OF BLADES 8″ 12″ 16″ 20″ 25″ 30″
L X W in mm. 950 x 650 1100 x 950 1525 x 1125 1600 x 1250 1750 x 1350 1875 x 1500
WEIGHT OF MACHINE 275kgs 450kgs 900kgs 1200kgs 2000kgs 3000kgs
Application – Can grind Pet Bottle up to 500ml Pet Bottle up to 1 litre Pet Bottle/Jar up to 10 litres Pet Bottle/Jar up to 20 litres Any Plastic Material below 25″ Any Plastic Material below 30″

Salient Features

  • Durable and highly efficient
  • Heavy duty shredder machine
  • Starter is provided for overload protection
  • Limit switch interlock
  • Economical pricing

FAQs

FAQs related to Shredder Machines
Q. What material can I shred in the shredder?
A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,
Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts,  Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.
Q. What does “Throat Width” or "Feed Width" mean?
A.  Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.
Q. How do I maintain my Shredder or Grinder?
A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled.  Depending on the type of shredder you purchase, this will vary.  Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
